Products > 96 Well Crystallization Plates > Greiner Bio One > Imp@ct Plate without reservoir

Imp@ct Plate without reservoir

Applications

  • Microbatch crystallization

Features

  • 96 conical, flat bottom wells
  • Supplied with cover
  • Microplate footprint

Description

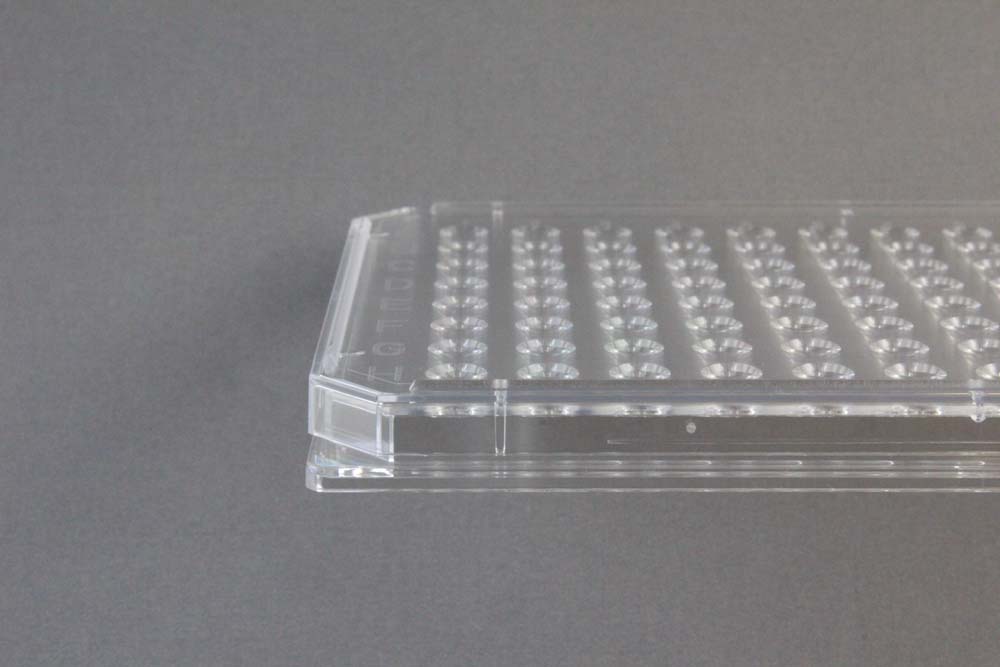

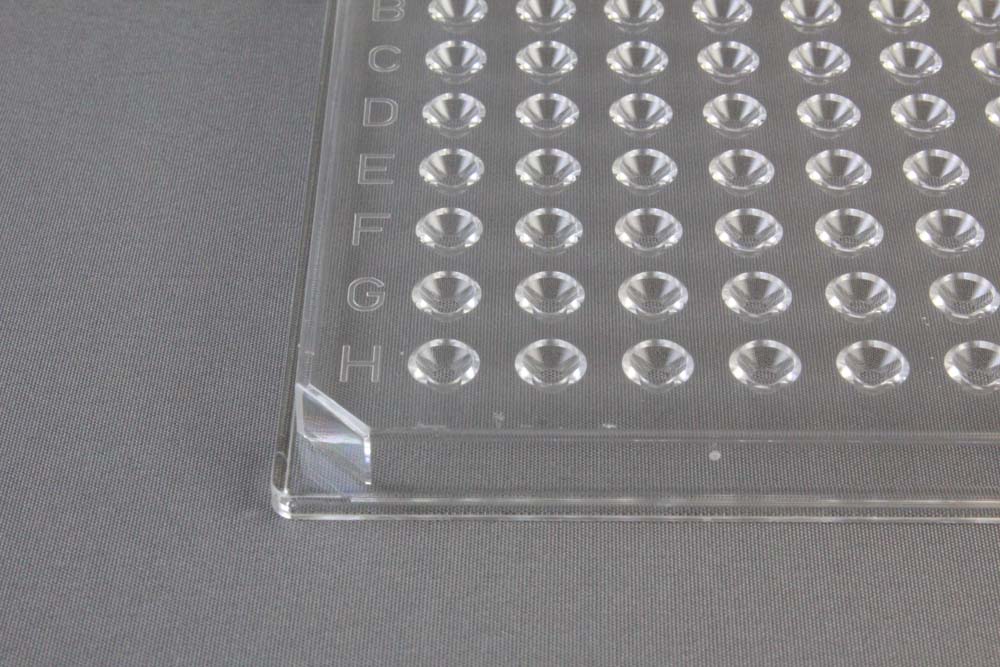

The Greiner 673101 96 Well Imp@ct Plate has a low profile format with individual conical shaped sidewalls and a smooth, flat bottom for enhanced microscopic investigation of crystals. Conical well shape avoids spreading of the sample and reagent droplet away from the center of the well. Typical well capacity for Paraffin, Silicon, or Al’s Oil is 10 to 20 µl per well. Vertical wells are labeled A-H. Horizontal wells are labeled 1-12. Stackable with supplied cover.

Plate Dimensions: 127.76 mm x 85.48 mm x 8.0 mm.
Conical well with 19 µl drop volume.
Flat bottom well diameter: 2 mm.

Show More



Imp@ct Plate without reservoir

Click to Zoom In

Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir

Imp@ct Plate without reservoir

Click to Zoom In

Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir
Imp@ct Plate without reservoir

CAT NO

HR3-295

NAME

96 Well Imp@ct Plate, Greiner 673101

DESCRIPTION

with cover, without reservoir – 10 plate case

PRICE

$100.00

Temporarily Unavailable
More Available Soon!

CAT NO

HR3-293

NAME

96 Well Imp@ct Plate, Greiner 673101

DESCRIPTION

with cover, without reservoir – 40 plate case

PRICE

$399.00

Temporarily Unavailable
More Available Soon!

Support Material(s)

Imp@ct Plate without reservoir High Throughput ApproachesImp@ct Plate without reservoir Greiner 673101 Plate Drawing
