Products > 96 Well Crystallization Plates > Corning > CrystalEX Corning 3785

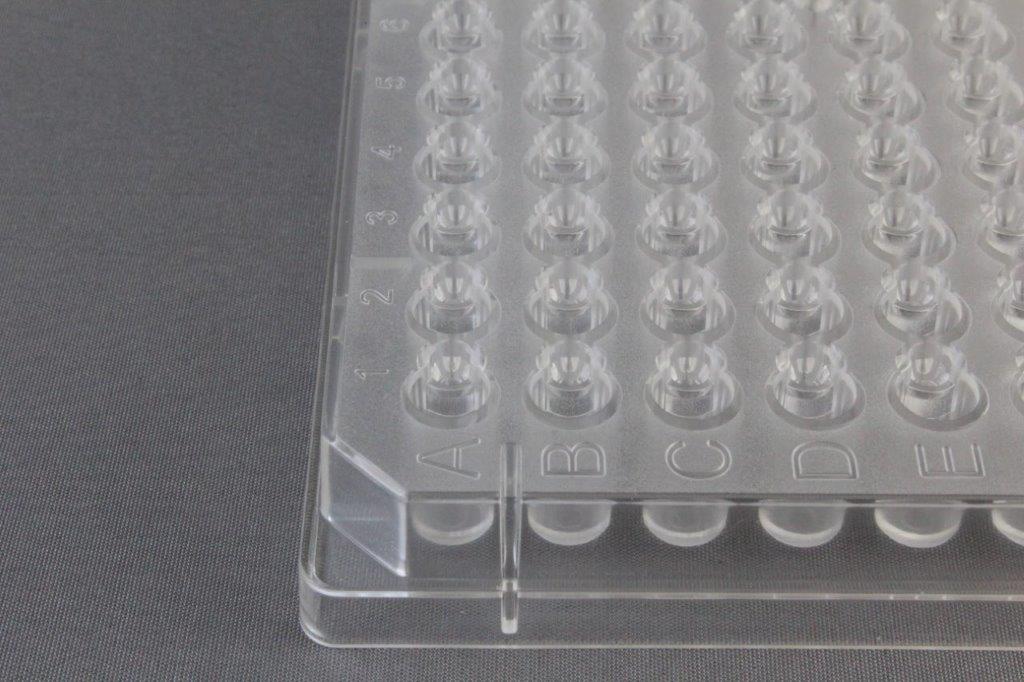

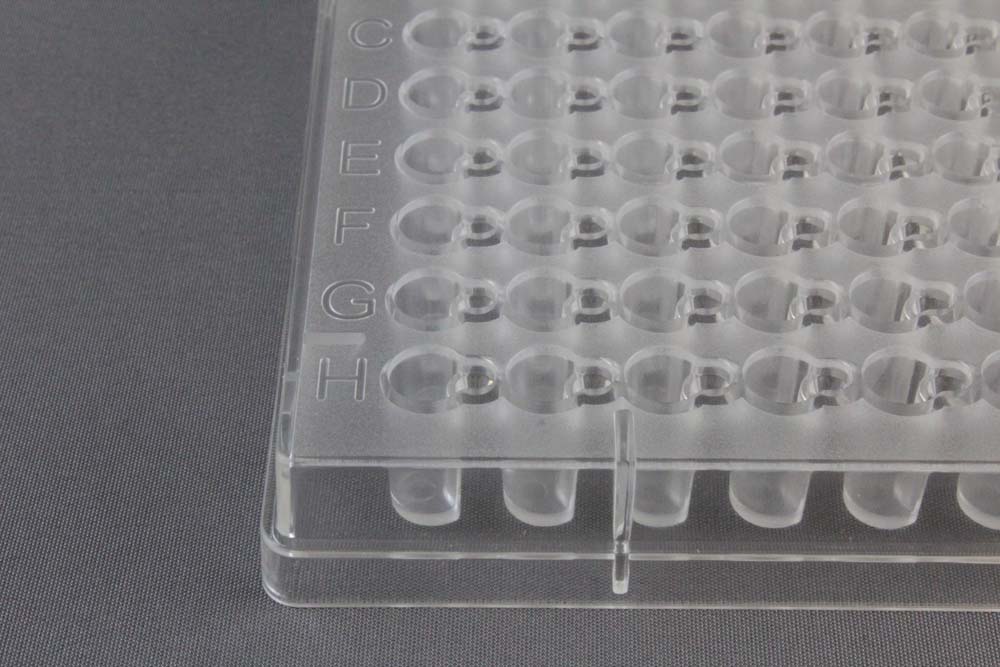

CrystalEX Corning 3785

Applications

  • Sitting drop crystallization

Features

  • Protein well shape: Flat bottom
  • Protein well volume: 7 µl
  • Protein well dimensions (top/bottom): 3 mm/1.5 mm
  • Protein well depth: 3.1 mm
  • Number of reagent/protein wells: 96/96
  • Reagent well volume: 210 µl
  • Recommended reagent working volume: 25-150 µl
  • UV imaging compatible

Description

Corning® CrystalEX 96 Well Crystallization plates are designed for sitting drop vapor diffusion, high throughput protein crystallization.

The well surfaces are treated to be hydrophilic for improved drop mixing. Both versions are compatible with 8 and 12 channel manual pipetters, automated liquid handling work stations, and imaging systems. Both versions are manufactured from an advanced polymer with high resistance to commonly used protein crystallization reagents. The advanced polymer material provides for low-background polarization and high optical clarity so protein crystals may be viewed under polarized light with minimal background interference. Low water absorption of the polymer prevents loss of protein drop volume.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521)

Show More



CrystalEX Corning 3785

Click to Zoom In

CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785

CrystalEX Corning 3785

Click to Zoom In

CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785
CrystalEX Corning 3785

CAT NO

HR3-113

NAME

CrystalEX 96 Well, Flat Bottom, Corning 3785

DESCRIPTION

10 plate case

PRICE

$135.00

cart quote

CAT NO

HR3-115

NAME

CrystalEX 96 Well, Flat Bottom, Corning 3785

DESCRIPTION

40 plate case

PRICE

$488.00

Temporarily Unavailable
More Available Soon!

Related Item(S)

  • ClearSeal Film™ and Applicator
  • Crystal Clear Sealing Tape
  • Crystal Clear Sealing Film
