Quartz Capillaries
Applications
- X-ray data collection
- Liquid-liquid diffusion crystallization
- Gel acupuncture crystallization
Features
- Thin walled – 10 micron
- Quartz Glass 0620
Description

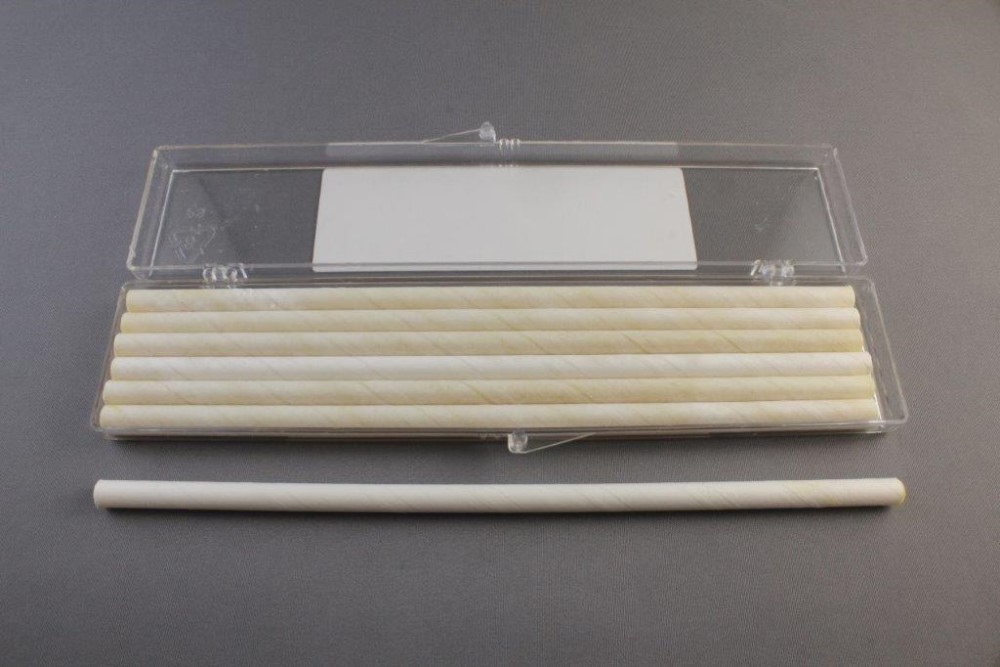

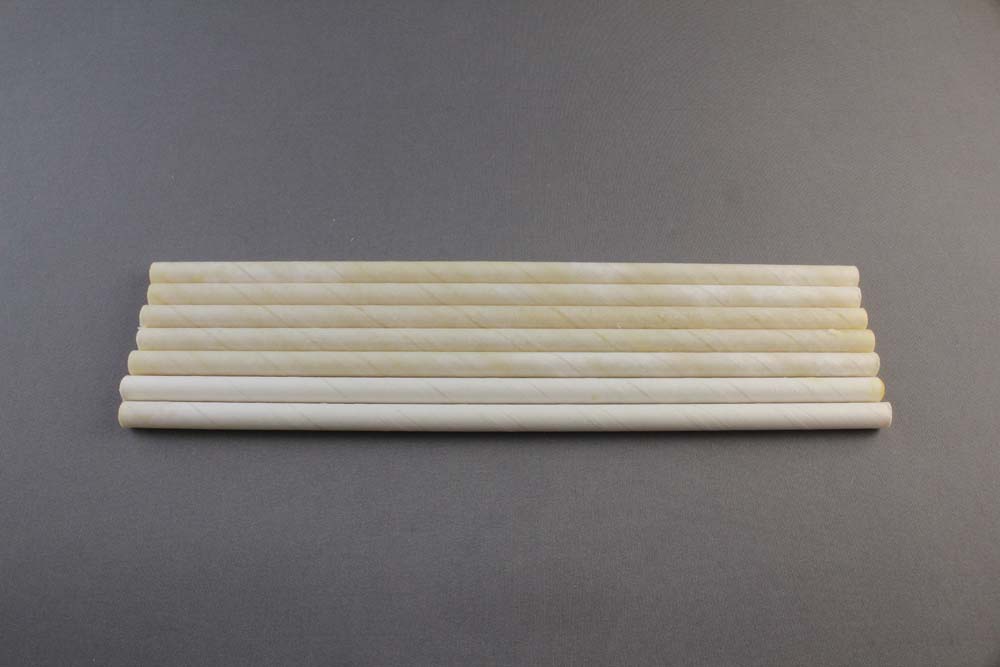

Crystal Clear Quartz capillaries that are extremely thin walled (approximately 10 micron wall thickness). The length of the capillary has a well defined diameter, with one end having a funnel shape and the other end closed. Quartz capillaries have a wall thickness of 0.01 mm and an overall length of 80 mm +/-5 mm. Quartz capillaries are available in a wide range of outside diameters from 0.1 mm to 5.0 mm. They are designed to mount, hold, and store small molecule and biological macromolecular crystals for x-ray data collection. Capillaries can also be used for crystal density measurements and crystal growth experiments. The capillaries can be sealed tightly against moisture and gases using wax, epoxy, or other sealing materials.
In determining what glass or quartz capillary is right for you, please refer to the “Linear Absorption Coefficient µ cm-1” table. This table indicates the amount of radiation that is absorbed by the capillary during x-ray data collection.
For 0.1 mm to 2.5 mm capillaries the open end capillary tube base size is 3.0 +/- 0.2 mm OD x 0.2 +/- 0.15 mm Wall thickness. For 3.0 and 3.5 mm capillaries the open end capillary base size is about 4.4 mm OD x 0.25 mm Wall thickness. For 4.0 and 5.0 mm capillaries the open end capillary based size is about 6.0 x 0.25 mm.
The Diameter is measured about 30 to 40 mm from the closed end (measuring instrument: LaserMicrometer LS 7500) The tolerances are as follows.
Diameter Tolerance Minimum Diameter Maximum Diameter
0.1 mm +/-0.05 mm 0.05 mm 0.15 mm
0.2 mm +/-0.05 mm 0.15 mm 0.25 mm
0.3 mm +/-0.05 mm 0.25 mm 0.35 mm
0.4 mm +/-0.05 mm 0.35 mm 0.45 mm
0.5 mm +/-0.05 mm 0.45 mm 0.55 mm
0.6 mm +/-0.05 mm 0.55 mm 0.65 mm
0.7 mm +/-0.05 mm 0.65 mm 0.75 mm
0.8 mm +/-0.05 mm 0.75 mm 0.85 mm
0.9 mm +/-0.05 mm 0.85 mm 0.95 mm
1.0 mm -0.05 +0.25 mm 0.95 mm 1.25 mm
1.5 mm +/-0.25 mm 1.25 mm 1.75 mm
2.0 mm +/-0.25 mm 1.75 mm 2.25 mm
2.5 mm +/-0.05 mm 2.25 mm 2.55 mm
3.0 mm +/-0.25 mm 2.75 mm 3.25 mm
3.5 mm +/-0.25 mm 3.25 mm 3.75 mm
4.0 mm +/-0.25 mm 3.75 mm 4.25 mm
5.0 mm +/-0.25 mm 4.75 mm 5.25 mm
Quartz Specifications
Glass type Fused silica / quartz glass
Density 2.2 g/cm3
Transformation temperature Tg= 1075 – 1210 degrees Celsius
Strain point approximately 1075 degrees Celsius
Annealing point approximately 1180 degrees Celsius
Softening point approximately 1730 degrees Celsius
Working point 1700 – 2100 degrees Celsius
Refractive index 1.46 589.3nm
Mohs hardness 5.5 – 6.5
Hydrolytic resistance, class 1 (DIN 12 111)
Acid resistance, class 1 (DIN 12 116)
Alkalai resistance, class 1 (DIN 52 322)
Chemical composition SiO2 99.99%
Trace elements
Al 16.00 ppm
Ca 0.80 ppm
Fe 0.80 ppm
K 0.90 ppm
Li 0.70 ppm
Na 0.90 ppm
Ti 1.50 ppm
Mg 0.10 ppm
Cu <0.05 ppm
Cr <0.05 ppm
Capillaries have only been tested at atmospheric pressure (760 mmHg (torr), 29.92 inHg, 14.696 psi). Use at other pressures has not been tested.
Click to Zoom In
CAT NO
HR6-128
NAME
DESCRIPTION
Size: 0.1 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-130
NAME
DESCRIPTION
Size: 0.2 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-132
NAME
DESCRIPTION
Size: 0.3 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-134
NAME
DESCRIPTION
Size: 0.4 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-136
NAME
DESCRIPTION
Size: 0.5 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-138
NAME
DESCRIPTION
Size: 0.6 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-140
NAME
DESCRIPTION
Size: 0.7 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-142
NAME
DESCRIPTION
Size: 0.8 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-144
NAME
DESCRIPTION
Size: 0.9 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-146
NAME
DESCRIPTION
Size: 1.0 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-148
NAME
DESCRIPTION
Size: 1.5 mm – 25 pack
PRICE
$171.00
cart quote
CAT NO
HR6-150
NAME
DESCRIPTION
Size: 2.0 mm – 25 pack
PRICE
$184.00
cart quote
CAT NO
HR6-151
NAME
DESCRIPTION
Size: 2.5 mm – 15 pack
PRICE
$184.00
cart quote
CAT NO
HR6-175
NAME
DESCRIPTION
Size: 3.0 mm – 15 pack
PRICE
$341.00
cart quote
CAT NO
HR6-177
NAME
DESCRIPTION
Size: 4.0 mm – 5 pack
PRICE
$341.00
cart quote
CAT NO
HR6-179
NAME
DESCRIPTION
Size: 5.0 mm – 5 pack
PRICE
$398.00
cart quote
Support Material(s)
Tolerances for Capillaries
Quartz Technical Data Sheet Related Item(S)

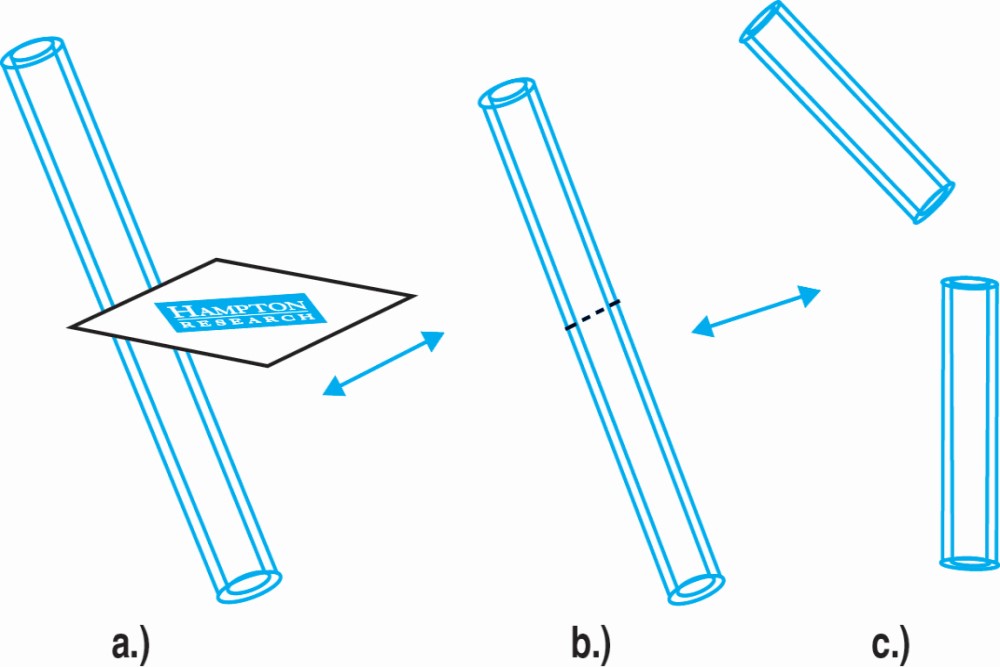

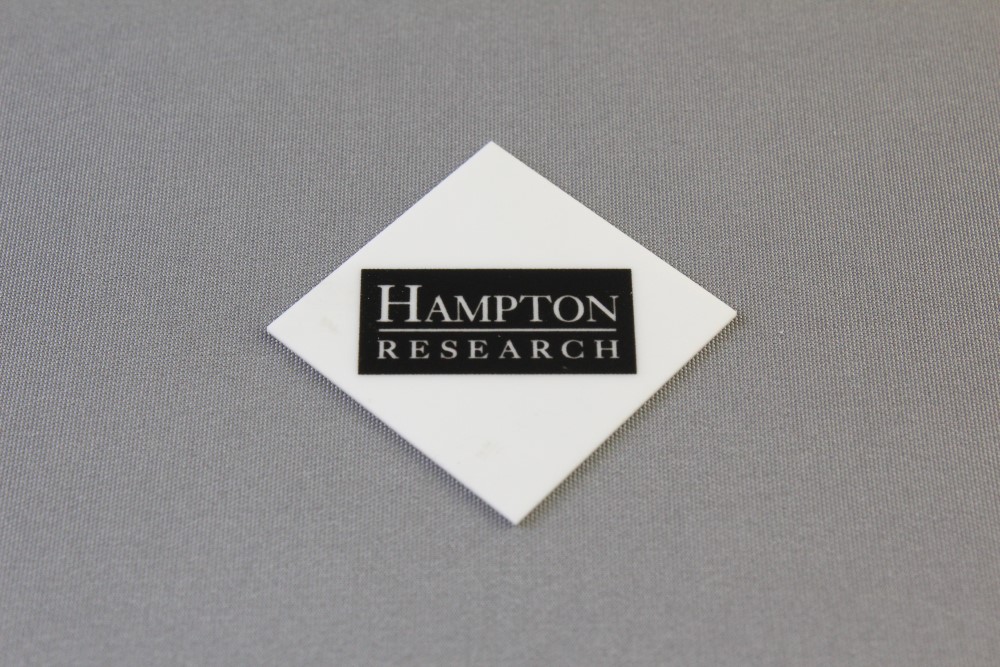

- Capillary Cutting Stone™
- Duco Cement
- Beeswax
- Wax Pen
- Four Color Mounting Clay
- Adjustable Crystal Mount
- Brass Specimen Pin
References
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
洁净包装可熔性聚四氟乙烯(PFA)管10ｍ 1.59φ×3.17（1／8”）φ×0.79日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环境下进行两重包装。
0.2ml PFA自动采样瓶 10个/组日本三博特sanplatec
小瓶本体单个(卷曲顶端)PFA Auto Sanpla 小瓶
容量：0.2ml
数量：10
外径×高：12.4×34.3
内面形状：圆锥底
确认材料的耐药性 >> 耐药性检索
产品特征：规格：使用温度范围 ： -200℃～＋ 260℃
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
PFA自动采样瓶7212日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
PFA自动采样瓶7211 （顶盖0.25mm厚）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：Special Glass 10 Capillaries蛋白结晶试剂盒Hampton Research
Hampton Research蛋白结晶试剂盒
Products > Capillaries, Mounts & Supplies > Capillaries > Special Glass 10 Capillaries
Special Glass 10 Capillaries
Applications
- X-ray data collection
- Liquid-liquid diffusion crystallization
- Gel acupuncture crystallization
Features
- Thin walled – 10 micron
- Special Glass 10 (Glass 0100, soda lime glass)
Description
Crystal Clear Special Glass 10 (Glass 0100, soda lime glass) capillaries that are extremely thin walled (approximately 10 micron wall thickness). The length of the capillary has a well defined diameter, with one end having a funnel shape and the other end closed. Glass capillaries have a wall thickness of 0.01 mm and an overall length of 80 mm +/-5 mm. Glass capillaries are available in a wide range of outside diameters from 0.1 mm to 2.0 mm. They are designed to mount, hold, and store small molecule and biological macromolecular crystals for x-ray data collection. Capillaries can also be used for crystal density measurements and crystal growth experiments. The capillaries can be sealed tightly against moisture and gases using wax, epoxy, or other sealing materials.
In determining what glass or quartz capillary is right for you, please refer to the “Linear Absorption Coefficient µ cm-1” table. This table indicates the amount of radiation that is absorbed by the capillary during x-ray data collection.
For 0.1 mm to 2.0 mm capillaries the open end capillary tube base size is 3.0 +/- 0.15 mm OD x 0.2 +/- 0.10 mm Wall thickness.
Special Glass 10 has a Linear Absorption Coefficient of 126.0 µ cm-1 for µ CuK Radiation (Wavelength for Copper radiation is 1.5418 Angstrom) and 14.7 µ cm-1 MoK Radiation (Wavelength for Molybdenum radiation is 0.7107 Angstrom) and a softening temperature of 815 degrees Celsius.
The Diameter is measured about 30 to 40 mm from the closed end (measuring instrument: LaserMicrometer LS 7500) The tolerances are as follows.
Diameter Tolerance Minimum Diameter Maximum Diameter
0.1 mm +/-0.05 mm 0.05 mm 0.15 mm
0.2 mm +/-0.05 mm 0.15 mm 0.25 mm
0.3 mm +/-0.05 mm 0.25 mm 0.35 mm
0.4 mm +/-0.05 mm 0.35 mm 0.45 mm
0.5 mm +/-0.05 mm 0.45 mm 0.55 mm
0.6 mm +/-0.05 mm 0.55 mm 0.65 mm
0.7 mm +/-0.05 mm 0.65 mm 0.75 mm
0.8 mm +/-0.05 mm 0.75 mm 0.85 mm
0.9 mm +/-0.05 mm 0.85 mm 0.95 mm
1.0 mm -0.05 +0.25 mm 0.95 mm 1.25 mm
1.5 mm +/-0.25 mm 1.25 mm 1.75 mm
2.0 mm +/-0.25 mm 1.75 mm 2.25 mm
Soda Lime Glass Specifications
Borosilicate Specifications
Glass type Soda lime glass
Density 2.52 g/cm3
Poisson’s number 0.22
Transformation temperature Tg= 520 degrees Celsius
Annealing point approximately 530 degrees Celsius
Softening point approximately 708 degrees Celsius
Working point 1035 degrees Celsius
Refractive index 1.514 at 20 degrees Celsius; 589.3 nm
Hydrolytic resistance, class 3 (DIN 12 111)
Acid resistance, class 1 (DIN 12 116)
Alkalai resistance, class 2 (DIN 52 322)
Chemical composition
SiO2 69%
Na2O 13%
Al2O3 4%
K2O 3%
B2O3 1%
BaO 2%
CaO 5%
MgO 3%
Capillaries have only been tested at atmospheric pressure (760 mmHg (torr), 29.92 inHg, 14.696 psi). Use at other pressures has not been tested.
Click to Zoom In
CAT NO
HR6-152
NAME
DESCRIPTION
Size: 0.1 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-154
NAME
DESCRIPTION
Size: 0.2 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-156
NAME
DESCRIPTION
Size: 0.3 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-158
NAME
DESCRIPTION
Size: 0.4 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-160
NAME
DESCRIPTION
Size: 0.5 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-162
NAME
DESCRIPTION
Size: 0.6 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-164
NAME
DESCRIPTION
Size: 0.7 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-166
NAME
DESCRIPTION
Size: 0.8 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-168
NAME
DESCRIPTION
Size: 0.9 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-170
NAME
DESCRIPTION
Size: 1.0 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-172
NAME
DESCRIPTION
Size: 1.5 mm – 25 pack
PRICE
$93.00
cart quote
CAT NO
HR6-174
NAME
DESCRIPTION
Size: 2.0 mm – 25 pack
PRICE
$122.00
cart quote
Support Material(s)
Tolerances for Capillaries
Special Glass 10 Technical Data Sheet Related Item(S)
- Capillary Cutting Stone™
- Duco Cement
- Beeswax
- Wax Pen
- Four Color Mounting Clay
- Adjustable Crystal Mount
- Brass Specimen Pin
References
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
PFA自动采样瓶7210 （顶盖2mm厚）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
0.2ml PFA自动采样瓶10个/组日本三博特sanplatec
小瓶本体单个(拧式顶端)PFA Auto Sanpla 小瓶
容量：0.2ml
数量：10
外径×高：11.4×32.5
内面形状：圆锥底
确认材料的耐药性 >> 耐药性检索
产品特征：特点：防止分析前微量试料的金属污染。适合氢氟酸溶剂。一体成型，溶出极少的高纯度，惰性的小瓶。可高温灭菌。内面为圆锥型的小瓶可降低在严格的分析中的污染和吸收。
规格：使用温度范围 ： -200℃～＋ 260℃
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
Sodium chloride蛋白结晶试剂盒Hampton Research
Hampton Research蛋白结晶试剂盒
Products > Optimize Reagents > Optimize – Salts > Sodium chloride
Sodium chloride
Applications
- Crystallization grade Sodium chloride for formulating screens or for optimization
Features
- Sterile filtered solution
- Formulated in Type 1+ ultrapure water: 18.2 megaohm-cm resistivity at 25°C, < 5 ppb Total Organic Carbon, bacteria free (<1 Bacteria (CFU/ml)), pyrogen free (<0.03 Endotoxin (EU/ml)), RNase-free (< 0.01 ng/mL) and DNase-free (< 4 pg/µL)
Description
Sodium chloride
Synonyms: None
NaCl
Mr 58.44
CAS Number [7647-14-5]
EC Number 231-598-3
Beilstein Registry Number 3534976
Merck 14,8599
RTECS VZ4725000
MDL Number MFCD00003477
PubChem Substance ID 24886182
Purity ≥ 99.5%
HR2-637 Measured pH Range: 5.2 – 8.6 at 25°C
HR2-637 Measured Conductivity Range: 281.2 – 435.6 mS/cm at 25°C
HR2-637 Measured Refractive Index Range: 1.37687 – 1.37750 at 20°C
Al < 5 mg/kg
As < 0.1 mg/kg
Ba < 5 mg/kg
Bi < 5 mg/kg
Br < 50 mg/kg
Ca < 10 mg/kg
Cd < 5 mg/kg
Co < 5 mg/kg
Cr < 5 mg/kg
Cu < 5 mg/kg
Fe < 1 mg/kg
Fe(CN)6 < 1 mg/kg
I < 10 mg/kg
K < 50 mg/kg
Li < 5 mg/kg
Mg < 5 mg/kg
Mn < 5 mg/kg
Mo < 5 mg/kg
Ni < 5 mg/kg
Pb < 5 mg/kg
PO4 < 5 mg/kg
SO4 < 100 mg/kg
Sr < 5 mg/kg
Zn < 5 mg/kg
Click to Zoom In
CAT NO
HR2-637
NAME
DESCRIPTION
200 mL
PRICE
$45.00
cart quote
Support Material(s)
HR2-636 Sodium chloride 3.0 M solution SDS
HR2-637 Sodium chloride 5.0 M solution SDS
HR2-638 Sodium chloride 2.0 M solution SDS Certificate Of Analysis
References
1. Crystal Structure of kappa-Bungarotoxin at 2.3-A Resolution. Dewan, JC; Grant, GA; Sacchettini, JC. Biochemistry 33, 13147-13154, 1994.
2. Expanding screening space through the use of alternative reservoirs in vapor-diffusion experiments. Janet Newman. Acta Cryst. (2005). D61, 490–493 doi:10.1107/S0907444905002726.
3. A modified vapor-diffusion crystallization protocol that uses a common dehydrating agent. Kirsty V. Dunlop and Bart Hazes. Acta Cryst. (2005). D61, 1041–1048, doi:10.1107/S0907444905013806.
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
0.5ml PFA自动采样瓶 10个/组日本三博特sanplatec
小瓶本体单个(螺丝顶端)PFA Auto Sanpla 小瓶
容量：0.5ml
数量：10
外径×高：11.4×32.5
内面形状：垂直
确认材料的耐药性 >> 耐药性检索
产品特征：特点：防止分析前微量试料的金属污染。适合氢氟酸溶剂。一体成型，溶出极少的高纯度，惰性的小瓶。可高温灭菌。内面为圆锥型的小瓶可降低在严格的分析中的污染和吸收。
规格：使用温度范围 ： -200℃～＋ 260℃
Capillary Cutting Stone™蛋白结晶试剂盒Hampton Research
Hampton Research蛋白结晶试剂盒
Products > Capillaries, Mounts & Supplies > Capillaries > Capillary Cutting Stone™
Capillary Cutting Stone™
Applications
- The easiest way to cut capillaries
Features
- Score and snap.
- Ceramic cutting stone
Description
These small (25 mm x 25 mm x 0.65 mm) cutting stones are used to make clean cuts of glass and quartz capillaries. Use the edge of the stone to etch the capillary then gently snap the capillary in two. This is useful for cutting the tips off closed capillaries used for mounting single crystals for x-ray diffraction analysis or for cutting capillaries to the desired length.
Capillary Cutting Procedure
1. Gently place the capillary on a clean, flat surface.
2. Gently holding the stone at approximately 30° angle to the capillary tube, starting near one edge of the stone, proceeding in a single, smooth motion, draw the length of the non-serrated edge of the stone across the capillary one time . Apply just enough pressure to score the capillary, do not attempt to cut through the capillary.
3. Pull the capillary axially until it breaks. If it won’t break, the score was not deep enough. Repeat the above steps, pressing down with slightly more force while drawing the cleaving stone the capillary.
4. Once cut, inspect the end finish to ensure the cut quality meets the application requirements.
Click to Zoom In
CAT NO
HR4-334
NAME
DESCRIPTION
each
PRICE
$19.00
cart quote
Related Item(S)
- Glass Number 50 Capillaries
- Special Glass 10 Capillaries
- Quartz Capillaries
References
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
2ml迷你PFA烧杯（外径×高（mm）：15.8φ×19）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：特点：超小型的 PFA烧杯。
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
0.35ml 迷你小瓶（内径×高（mm）：6.6×22.8）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：特点：盖子柔软，可轻松的脱盖，盖盖。
规格：底部为圆形。
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
0.2ml迷你小瓶（内径×体高（mm）：5.6×16.5）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：特点：盖子柔软，可轻松的脱盖，盖盖，底部为圆形。
规格：带有容易开关的滑帽，底部为圆形。
StockOptions Sodium Acetate Buffer Kit蛋白结晶试剂盒Hampton Research
Hampton Research蛋白结晶试剂盒
Products > Optimization Screens > StockOptions Buffer Kits > StockOptions Sodium Acetate Buffer Kit

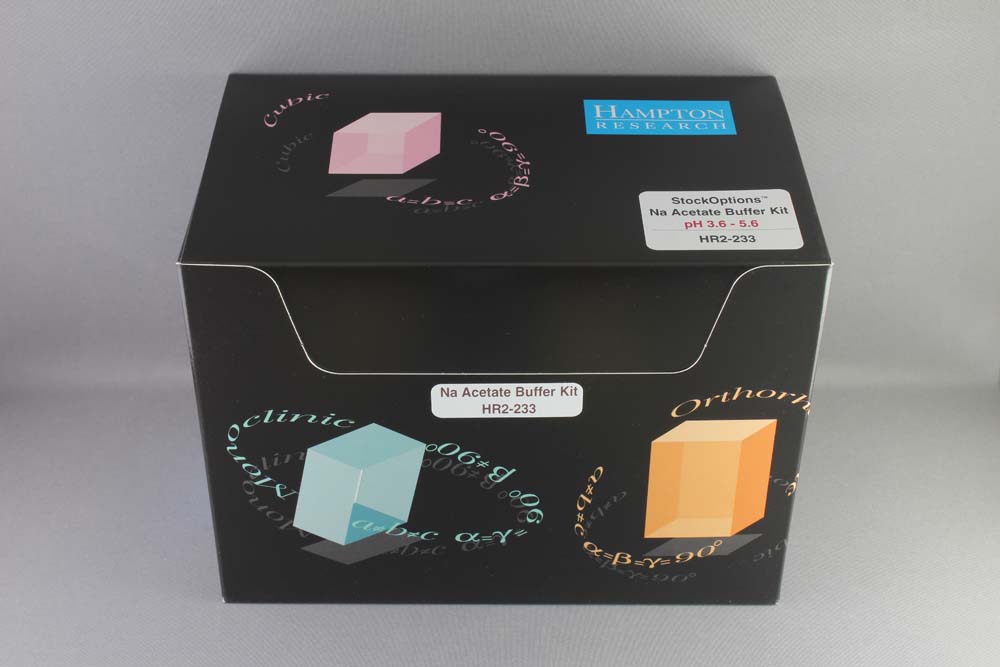

StockOptions Sodium Acetate Buffer Kit
Applications
- Focused, titrated buffer stocks for crystal screening, optimization, & production
Features
- 0.1 unit increments for fine tuning pH
- pH 3.6 – 5.6
- 1.0 M concentrated stocks
- pKa = 4.8
Description
StockOptions Buffer kits are reagent toolboxes for the macromolecular crystal grower. Stock-Options reagent kits offer precisely formulated, high quality crystallization grade reagent stocks in convenient, cost-effective kits. The chemicals utilized in StockOptions kits are the same crystallization grade, ultra-high purity chemicals utilized in the Hampton Research kits. StockOptions reagents are carefully formulated under strict quality standards to ensure reliable performance and lot-to-lot consistency.
Preformulated stocks remove calculation, measurement, and formulation errors. No more second guessing how the reagent was formulated, what specific chemical was used, when it was made, or how to precisely reproduce that reagent when it is gone and more reagent is required for additional setups.

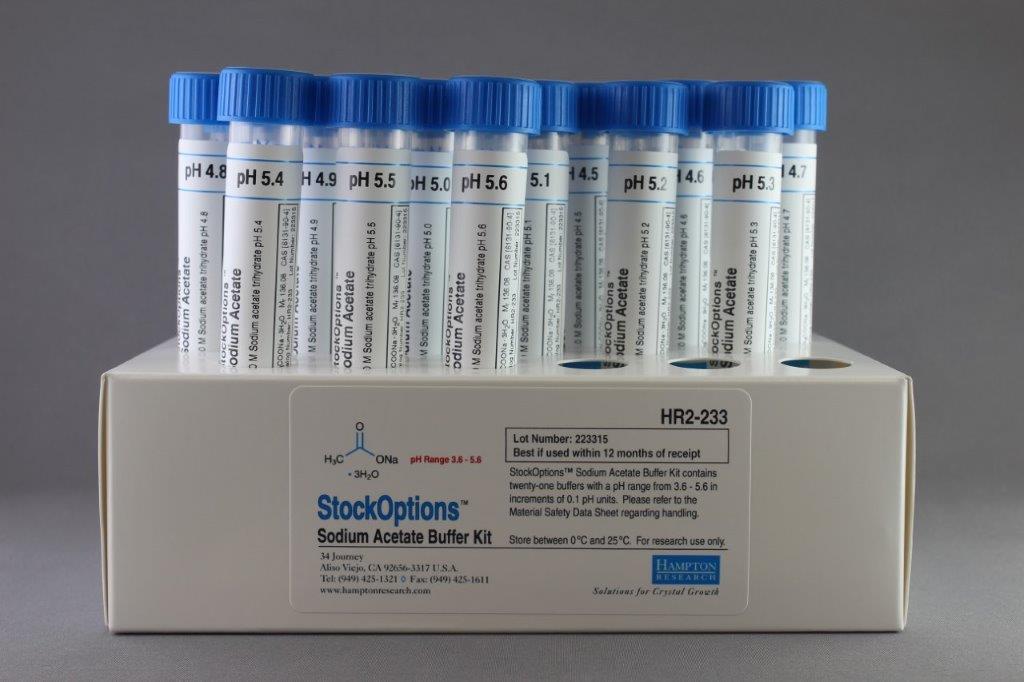

Each HR2-233 contains 21 unique reagents covering the pH range of 3.6 to 5.6 in 0.1 pH increments. Each reagent is supplied in a 10 milliliter volume and is titrated using HCl.
Sodium acetate trihydrate
Synonym: Acetic acid sodium salt trihydrate
C2H3NaO2·3H2O
CH3COONa·3H2O
Mr 136.08
CAS Number [6131-90-4]
EC Number 204-823-8
Merck 14,8571
Beilstein Registry Number 3732037
RTECS AJ4580000
MDL Number MFCD00071557
PubChem Substance ID 24886015
Purity >99.5%
pKa = 4.8
Assay
Al <0.0005%
As <0.00001%
Bi <0.0005%
Ca <0.001%
Cd <0.0005%
Cl <0.0005%
Co <0.0005%
Cr <0.0005%
Cu <0.0005%
Fe <0.0005%
K <0.005%
Li <0.0005%
Mg <0.0005%
Mn <0.0005%
Mo <0.0005%
Ni <0.0005%
Pb <0.0005%
PO4 <0.0005%
SO4 <0.002%
Sr <0.0005%
Zn <0.0005%
Click to Zoom In
CAT NO
HR2-233
NAME
DESCRIPTION
pH 3.6 to 5.6 in 0.1 pH unit increments
PRICE
$265.00
cart quote
Support Material(s)
HR2-233 StockOptions Sodium Acetate Documents
HR2-233 StockOptions Sodium Acetate SDS Related Item(S)
- Sodium acetate trihydrate Buffer
- Individual StockOptions Sodium Acetate Reagents
References
1. Microscale Fluorescent Thermal Stability Assay for Membrane Proteins Structure, Volume 16, Issue 3, 11 March 2008, Pages 351-359 Alexander I. Alexandrov, Mauro Mileni, Ellen Y.T. Chien, Michael A. Hanson, Raymond C. Stevens
2. Crystal structures of reduced, oxidized, and mutated human thioredoxins: evidence for a regulatory homodimer. Weichsel, A; Gasdaska, JR; Powis, G; Montfort, WR. Structure 4, 735- 751, 1996.
3. Increasing the size of microcrystals by fine sampling of pH limits. A. McPherson. J. Appl. Cryst. (1995). 28, 362-365.
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
洁净包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
Beeswax蛋白结晶试剂盒Hampton Research
Hampton Research蛋白结晶试剂盒
Products > Capillaries, Mounts & Supplies > Waxes & Clay > Beeswax
Beeswax
Applications
- Sealing capillaries
- Keep bees busy
Features
- Made by crystallography grade bees
Description
Pure, natural, and soft Beeswax – golden in color. Beeswax has a melting point of 63°C/146°F. Beeswax comes in seven easy to peel wrapped sticks making it very convenient to handle. Very useful for sealing the ends of capillary tubes when mounting crystals.
Click to Zoom In
CAT NO
HR4-312
NAME
DESCRIPTION
7 sticks
PRICE
$38.00
cart quote
Support Material(s)
HR4-312 Beeswax Stick SDS Related Item(S)
- Glass Number 50 Capillaries
- Special Glass 10 Capillaries
- Quartz Capillaries
- Wax Pen
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
- Products
- Gallery
- My Account
|
|
|
- Contact Us
- Quick Order
- Support
|
- Privacy Policy
- Terms and Conditions
|
- Products
- Gallery
- My Account
- Support
- Contact Us
- Quick Order
- Privacy Policy
- Terms and Conditions
|
|
|
|
|
|
|
© 2022 HAMPTON RESEARCH CORP.
| Website by Skyhound Internet
PFA平顶带盖容器(外径×内径×高(mm) : 22φ×18φ×23)日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：洁净包装包装可熔性聚四氟乙烯(PFA)管（10m/卷）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
把 PFA管在清洁屋内用纯水 (Class1000)清洗。 在 Class100 以下的环
境下进行两重包装。
可熔性聚四氟乙烯(PFA)管10ｍ（英制尺寸）（内径 :3／4inch）日本三博特sanplatec
确认材料的耐药性 >> 耐药性检索
产品特征：●特点
・拥有不粘性。 有污秽难粘贴的特性。
・在高温， 高湿， 高频域的情况下， 电气特性的降低极少。 所以适合电
绝缘的用途。
・几乎任何气侯都可以使用。
・最高使用温度是 260℃、 不过连续使用时请在 200℃以下使用。
・和 PTFE管比较， PFA管是透明的。
PFA GFAA分析用样品杯722C日本三博特sanplatec
外径×内径×全高：29角×25Φ×36H
确认材料的耐药性 >> 耐药性检索
产品特征：特点：内部形状为圆锥形， 适合GFAA分析用。
PFA GFAA分析用样品杯7224（容量：4.0ml）日本三博特sanplatec
外径×内径×全高：22角×17 Φ ×32H
确认材料的耐药性 >> 耐药性检索
产品特征：特点：内部形状为圆锥形， 适合GFAA分析用。
